Bronze Wrapped Bushing

tem NO.: CHB-090

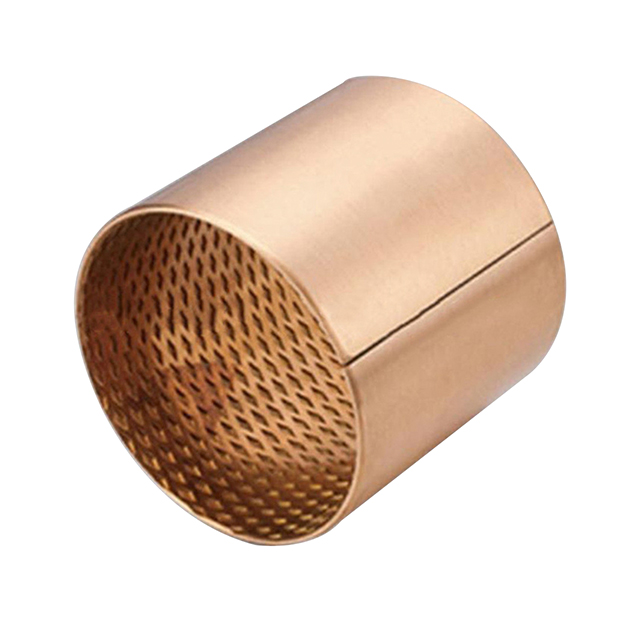

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

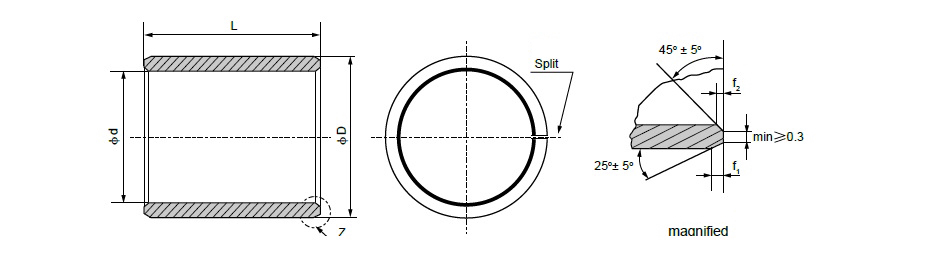

(D)	(d)	Axle		Housing		f₁	f₂	L±0.25
		dimension	f7	dimension	H7			10	15	20	25	30	40	50
12	10	10	-0.013 -0.028	12	+0.0180	0.6	0.3
14	12	12	-0.016 -0.034	14	+0.0180			●	●	●
16	14	14	-0.016 -0.034	16	+0.0180
17	15	15	-0.016 -0.034	17	+0.0180						●
18	16	16	-0.016 -0.034	18	+0.0180
19	17	17	-0.016 -0.034	19	+0.0210				●	●	●
20	18	18	-0.016 -0.034	20	+0.0210						●
23	20	20	-0.020 -0.041	23	+0.0210	0.8	0.4		●		●
25	22	22	-0.020 -0.041	25	+0.0210				●	●	●
27	24	24	-0.020 -0.041	27	+0.0210					●	●	●
28	25	25	-0.020 -0.041	28	+0.0210						●
32	28	28	-0.020 -0.041	32	+0.0250	1.2	0.6				·	·
34	30	30	-0.020 -0.041	34	+0.0250						·	●	●
36	32	32	-0.025 -0.050	36	+0.0250					●	●	●
39	35	35	-0.025 -0.050	39	+0.0250						●	●
44	40	40	-0.025 -0.050	44	+0.0250						●	●	●
50	45	45	-0.025 -0.050	50	+0.0250	1.6	0.8			●	●	●
55	50	50	-0.025 -0.050	55	+0.0300							●
60	55	55	-0.030 -0.060	60	+0.0300								●	●
65	60	60	-0.030 -0.060	65	+0.0300							●	●	●
70	65	65	-0.030	70	+0.0300								●
(D)	(d)	Axle		Housing		f1	f₂	L±0.25
		dimension	f7	dimension	H7			30	40	50	60	80	100	120
75	70	70	-0.030 -0.060	75	+0.0300	1.6	0.8
80	75	75	-0.030 -0.060	80	+0.0300				●	●	●
85	80	80	-0.030 -0.060	85	+0.0350						●
90	85	85	-0.036 -0.071	90	+0.0350				●	●	●
95	90	90	-0.036 -0.071	95	+0.0350						●
100	95	95	-0.036 -0.071	100	+0.0350						●
105	100	100	-0.036 -0.071	105	+0.0350					●	●
110	105	105	-0.036 -0.071	110	+0.0350						●	●	●
115	110	110	-0.036 -0.071	115	+0.0350					●	●		●
120	115	115	-0.036 -0.071	120	+0.0350					●	●	●	●
125	120	120	-0.036 -0.071	125	+0.0400						●	●	●
130	125	125	-0.043 -0.083	130	+0.0400						●	●
135	130	130	-0.043 -0.083	135	+0.0400						●	●	●
140	135	135	-0.043 -0.083	140	+0.0400						●		●
145	140	140	-0.043 -0.083	145	+0.0400
150	145	145	-0.043 -0.083	150	+0.0400						●	●
160	155	155	-0.043 -0.083	160	+0.0400
170	165	165	-0.043 -0.083	170	+0.0400								●
180	175	175	-0.043 -0.083	180	+0.0400								●	●
190	185	185	-0.050 -0.096	190	+0.0460							●	●	●
200	195	195	-0.050 -0.096	200	+0.0460							●	●	●
210	205	205	-0.050 -0.096	210	+0.0460							●	●
220	215	215	-0.050 -0.096	220	+0.0460							●	●
230	225	225	-0.050 -0.096	230	+0.0460							●	●	●
240	235	235	-0.050 -0.096	240	+0.0460									●
250	245	245	-0.050 -0.096	250	+0.0460							●	●	●
265	260	260	-0.056 -0.108	265	+0.0520									●
285	280	280	-0.056 -0.108	285	+0.0520							●	●	●
305	300	300	-0.056 -0.108	305	+0.0520									●
