Item NO.: CHB-FZH

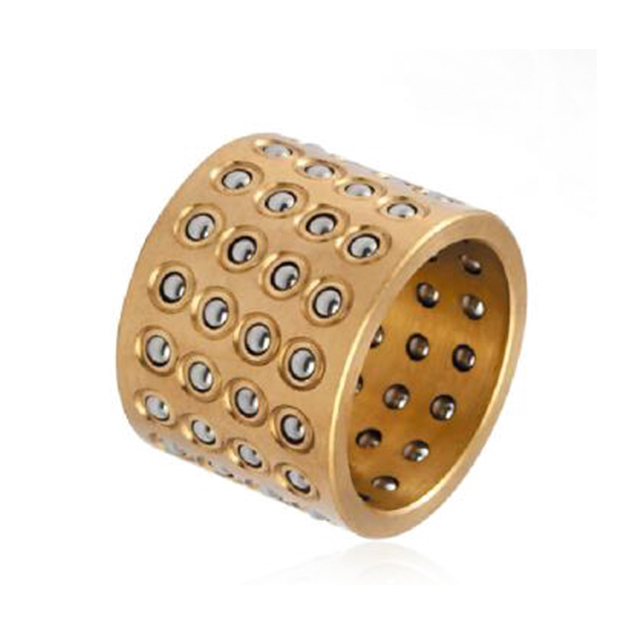

The basement material of this product is bronze, with high quality steel balls arranged orderly in certain angle and density, it is produced by special workmanship. These kind of products are widely used in punching mold and high-precision machine tools.
| Designation | CD | H | cd | EN | M | Balls | t | L |
| CHB-FZ-1950 | 19 | 50 | 3 | 12 | 8 | 96 | 5.5 | 5.75 |
| CHB-FZ-1960 | 60 | 10 | 120 | 5.25 | ||||
| CHB-FZ-2050 | 20 | 50 | 8 | 96 | 5.75 | |||
| CHB-FZ-2060 | 60 | 10 | 120 | 5.25 | ||||
| CHB-FZ-2250 | 22 | 50 | 14 | 8 | 112 | 5.75 | ||
| CHB-FZ-2260 | 60 | 10 | 140 | 5.25 | ||||
| CHB-FZ-2360 | 23 | 60 | 100 | 140 | 5.25 | |||
| CHB-FZ-2475 | 24 | 75 | 16 | 13 | 208 | 5.45 | 4.8 | |
| CHB-FZ-2550 | 25 | 50 | 8 | 128 | 5.5 | 5.75 | ||
| CHB-FZ-2560 | 60 | 10 | 112 | 5.25 | ||||
| CHB-FZ-2775 | 27 | 75 | 13 | 154 | 5.45 | 4.8 | ||
| CHB-FZ-2860 | 28 | 60 | 4 | 14 | 8 | 112 | 6.5 | 7.25 |
| CHB-FZ-2875 | 75 | 11 | 154 | 5 | ||||
| CHB-FZ-3060 | 30 | 60 | 8 | 112 | 7.25 | |||
| CHB-FZ-3075 | 75 | 11 | 154 | 5 | ||||
| CHB-FZ-3260 | 32 | 60 | 16 | 8 | 128 | 7.25 | ||
| CHB-FZ-3275 | 75 | 11 | 176 | 5 | ||||
| CHB-FZ-3685 | 36 | 85 | 12 | 192 | 6.75 | |||
| CHB-FZ-3690 | 90 | 13 | 208 | 6 | ||||
| CHB-FZ-3870 | 38 | 70 | 5 | 8 | 128 | 8 | 7 | |
| CHB-FZ-3890 | 90 | 11 | 176 | 7.9 | 5.5 | |||
| CHB-FZ-4090 | 40 | 90 | 11 | 176 | 5.5 | |||
| CHB-FZ-4590 | 45 | 90 | 18 | 11 | 195 | 5.5 | ||
| CHB-FZ-45110 | 110 | 13 | 234 | 8 | 7 | |||
| CHB-FZ-5090 | 50 | 90 | 20 | 11 | 20 | 7.9 | 5.5 | |
| CHB-FZ-50110 | 110 | 13 | 260 | 8 | 7 | |||
| CHB-FZ-6090 | 60 | 90 | 22 | 11 | 242 | 7.9 | 5.5 | |
| CHB-FZ-60110 | 110 | 13 | 286 | 8 | 7 | |||
| CHB-FZ-80130 | 80 | 130 | 28 | 15 | 420 | 9 |
