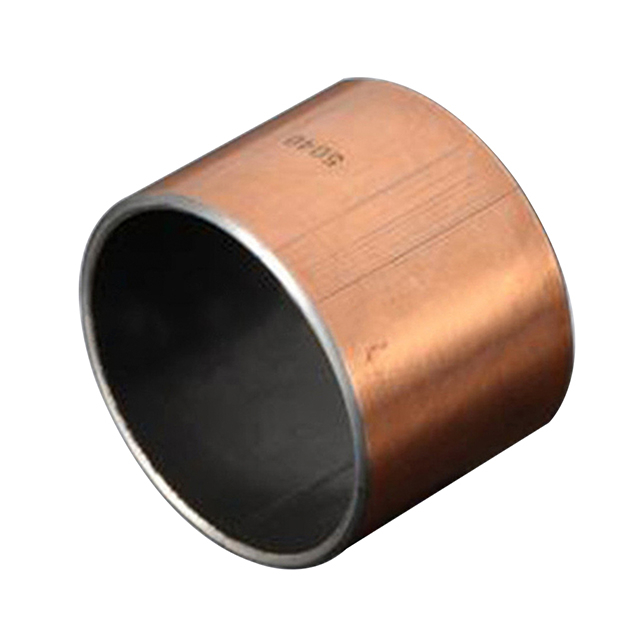

Metal-Polymer Composite Bushing

Quantity:
Availability:





Inquire Add to Basket

Product Description

tem NO.: CHB-090

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Technical Date
P Max Load Capacity	Static load	250N/mm²
	Dynamic load	150N/mm²
V Max Sliding Speed	Dry friction	2.5m/s
	Oil lubrication	5.0m/s
Max PV Value Limit	Dry friction	4.2N/mm² ·m/s
	Oil lubrication	60N/mm² ·m/s
μFriction coefficient		0.03~0.18
Working temperature		-195℃~+280℃
thermal conductivity		42W/m ·k

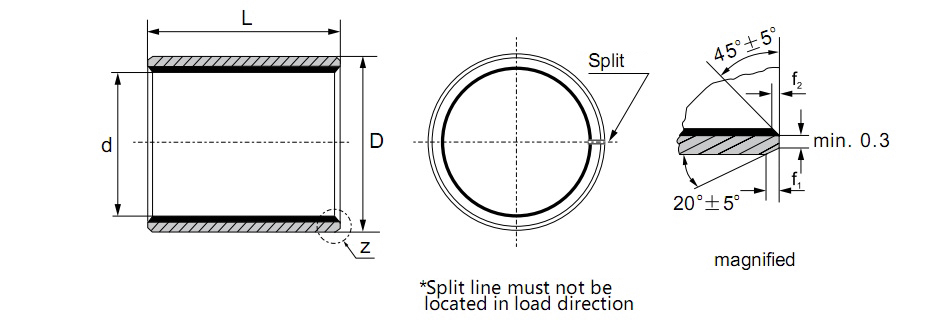

Shaft diameter		Seat hole		D₀		Di,a	S₃	f₁	f₂	0 L-0.4
dimension	f7	dimension	H7	D₀		Di,a	S₃	f₁	f₂	6	8	10	12	15	20	25	30	40	50
2	0 -0.006	3.5	0 +0.008	3.5	+0.055 +0.025	+0.055 -0.010	0.750 0.730	0.4	0.3
4	0 -0.008	5.5	0 +0.008	5.5			0.750 0.730	0.4	0.3		●
5	-0.010 -0.022	7	0 +0.015	7			1.005 0.980	0.6	0.3			●
6	-0.010 -0.022	8		8						●	●	●
8	-0.013 -0.028	10		10						●		●	●	●
10	-0.013 -0.028	12	0 +0.018	12	+0.065 +0.030	+0.058 -0.010				●	●	●	●	●	●
12	-0.016 -0.034	14		14						●	●	●	●	●	●	●
13		15		15								●			●
14		16		16								●	●	●	●	●
15		17		17								●	●	●	●
16		18		18								●	●	●	●
17		19	0 +0.021	19	+0.075 +0.035	+0.061 -0.010						●	●		●
18		20		20		+0.061 -0.010						●	●	●	●	●
20	-0.020 -0.041	23		23		+0.071 -0.010	1.505 1.475	0.6	0.4			●	●	●	●	●	●
22		25		25								●	●	●	●	●
24		27		27										●		●	●
25		28		28								●	●	●	●	●	●	●	●
28		32	0 +0.025	32	+0.085 +0.045	+0.085 -0.010	2.005 1.970	1.2	0.4					●	●	●	●	●
30		34		34									●	●	●	●	●	●
32	-0.025 -0.050	36		36											●		●	●
35		39		39									●	●	●	●	●	●	●
38		42		42										●			●	●
40		44		44											●	●	●		●

Shaft diameter		Seat hole		D₀		Di,a	S₃	f₁	f₂	0 L-0.4
dimension	f7	dimension	H7	D₀		Di,a	S₃	f₁	f₂	20	25	30	40	50	60	70	80	100	115
45	-0.025 -0.050	50	+0.0250	50	+0.085 +0.045	+0.105 -0.010	2.505 2.460	1.8	0.6	●	●	●	●	●
50	-0.025 -0.050	55	+0.0300	55	+0.100 +0.055	+0.110 -0.010				●		●	●	●	●
55	-0.030 -0.060	60		60								●	●	●	●
60		65		65									●	●		●
65		70		70								●	●	●	●	●
70		75		75									●	●	●	●	●
75		80		80								●	●	●	●	●	●
80	0 -0.046	85	+0.0350	85	+0.120 +0.070	+0.155 +0.020	2.490 2.440						●	●		●	●	●
85	0 -0.054	90		90									●		●		●	●
90		95		95									●	●	●		●	●
95		100		100										●	●		●	●
100		105		105										●	●		●		●
105		110		110											●		●		●
110		115		115											●		●		●
120		125	+0.0400	125	+0.170 +0.100	+0.210 +0.070	2.465 2.415								●		●
125	0 -0.063	130		130											●			●	●
130		135		135											●		●	●
140		145		145											●		●	●
150		155		155											●		●	●
160		165		165											●		●	●	●
180		185	+0.0460	185	+0.210 +0.130	+0.216 +0.070											●	●
190	0 -0.072	195		195													●	●
200		205		205													●	●
220		225		225											●		●
250		255	+0.0520	255	+0.260 +0.170	+0.222 +0.070											●	●
260	0 -0.081	265		265													●	●
280		285		285													●	●
300		305		305													●
